Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency

  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
  • Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
Τόπος καταγωγής Κίνα
Μάρκα Trancar Industries
Πιστοποίηση CE/ISO
Αριθμό μοντέλου ΤΚΜ-Δ
Ποσότητα παραγγελίας min 1 σετ
Τιμή USD 9000-5000 Dollar per set
Συσκευασία λεπτομέρειες Κουτάκι από αντισυμβατικό ξύλο/καρτόνι
Χρόνος παράδοσης 35 εργάσιμες ημέρες
Όροι πληρωμής L/C,D/A,D/P,T/T,Western Union
Δυνατότητα προσφοράς 20 σετ το μήνα

Επικοινωνήστε μαζί μου για δωρεάν δείγματα και κουπόνια.

WhatsApp:0086 18588475571

βυθός: 0086 18588475571

σκυϊδάκι: sales10@aixton.com

Αν έχετε οποιοδήποτε πρόβλημα, παρέχουμε 24ωρη ηλεκτρονική βοήθεια.

x
Λεπτομέρειες
Όνομα προϊόντος ημιαυτόματη μηχανή γυαλίσματος κεφαλής πιάτων Διάσταση 3500x1600x3050 χιλιοστά
Βάρος 2500 κιλά Δυναμικό 380V 400V 415V κλπ. 50Hz/60Hz
Επιλογή χρώματος Μπλε/Κίτρινο/Κόκκινο/Γκρι Χρήση Καθαρισμός επιφάνειας χάλυβα,απομάκρυνση σκουριάς,απομάκρυνση επιφάνειας καθρέφτη
Κατάσταση 100% καινούργιο Σύστημα Ελέγχου Ημιαυτόματη/CNC
Αποδοτικότητα στίλβωσης 8-12m2 ανά ώρα Εγγύηση 18 μήνας
Εξυπηρέτηση μετά την πώληση Τεχνική υποστήριξη με βίντεο/Ενδίκτυα υποστήριξη/Εγχειρηματίας στο εξωτερικό Προμηθεύω ODM & OEM
Επισημαίνω

3500x1600x3050mm Dished End Polishing Machine

,

2500 kg Semi-automatic Polishing Machine

,

8-12m2 per Hour Tank Head Polishing Machine
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
Semi-automatic Polishing Machine for Dish Head End

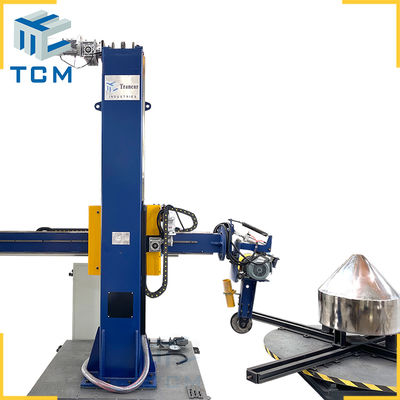

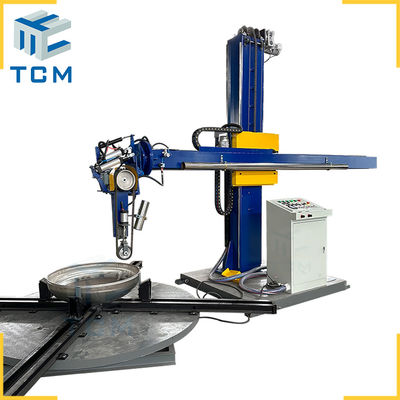

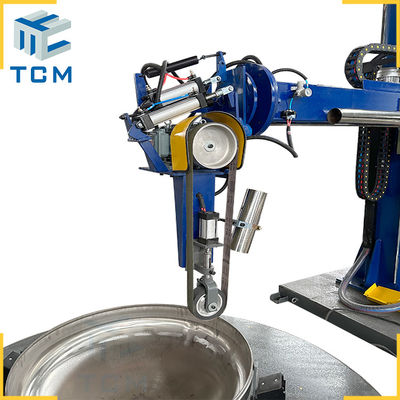

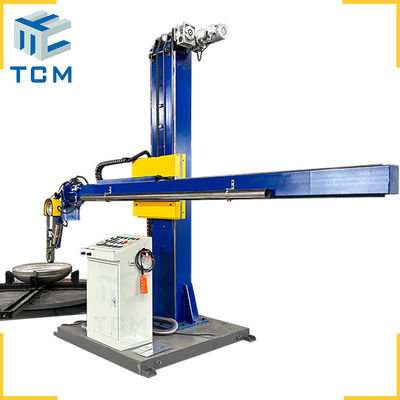

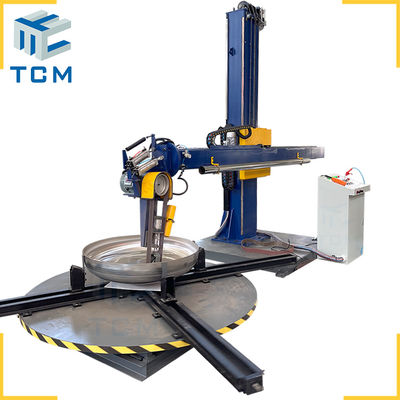

TCM-D column and boom manipulator automatic surface grinding machine is designed for steel metal tank ends, dish heads, tank caps/bottoms/cones inner and outer surface polishing and buffing.
This model is primarily used for surface polishing of stainless steel, metal, aluminum, and copper dished ends, tank heads, and cylinder heads. It can also be used for vertical tank surface grinding.
The TCM-D automatic polishing machine is suitable for various standard head polishing applications including conical head polishing, spherical head surface polishing, dish head polishing, special heads polishing, and stainless steel oval head inside/outside surface grinding. It's widely used in pharmaceutical, medical, food & beverage, water purification, pressure vessel, cosmetic, wastewater treatment, semiconductor, and photovoltaic industries.
Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 0
Technical Specifications
Parameter Details
Available Polishing Workpiece Size Inside & outside diameter: 450~5000mm
Turntable Max Loading Capacity 1 Ton / 2 Ton /5 Ton / 10 Ton (option or custom design 15 Ton, 20 Ton)
Polishing Precision Surface roughness(Ra) ≤0.25μm
Production Efficiency 6~12 m²/hour
Total Dimension Machine: 3500×1600×3080mm
Column: 300×400×8mm
Beam: 150×200×6mm
Input Total Power 12 kw
Power Supply 380V 415V / 50Hz 60HZ / 3p or Customization
Color Grey/Green/Blue/Red/Yellow (Custom design available)
Machine Weight 2250kg
Suitable Polishing Material Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc)
Packaging and Delivery
  • Plywood case + PE Film + Carton protection
  • Custom packaging available based on order requirements
Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 1 Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 2 Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 3 Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 4
Trancar Automatic Polishing Machine in Client's Workshop
Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 5
Contact Us
For any other queries about our polishing machines, please feel free to contact us. We will respond within 12 hours.
Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency 6
